SEGGER Evaluation Software for Keil MCB1700

  1. 1.Data Sheets
    1. 1.1.Keil MCB1700
    2. 1.2.LPC1768FBD100

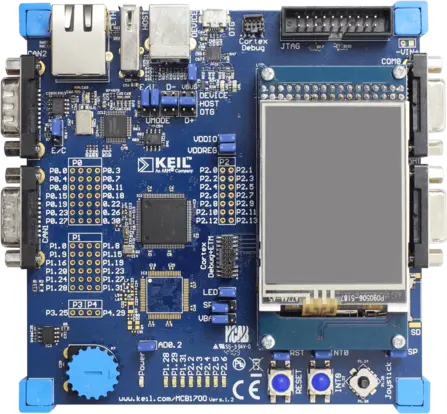

NXP Keil - MCB1700

SEGGER Evaluation Software

SEGGER Evaluation Software available upon request

Other downloads

Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

Request embOS-MPU for Cortex-M and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

Keil MCB1700

  • 100MHz ARM Cortex-M3 processor-based MCU
  • On-Chip Memory: 512KB Flash and 64KB RAM
  • Color QVGA TFT LCD
  • 10/100 Ethernet Port
  • USB 2.0 Full Speed - USB, USB-OTG, and USB Host
  • 2 CAN interfaces
  • 2 Serial Ports
  • SD/MMC Card Interface
  • 5-position Joystick and push-button
  • Analog Voltage Control for ACD Input
  • Amplifier and Speaker
  • Up to 70 GPIO
  • Debug Interface Connectors
  • 20-pin JTAG (0.1 inch connector)
  • 10-pin Cortex debug (0.05 inch connector)
  • 20-pin Cortex debug + ETM Trace (0.05 inch connector)

LPC1768FBD100

  • Arm Cortex-M3 processor, running at frequencies of up to 100 MHz
  • Arm Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
  • 32/16 kB of SRAM on the CPU with local code/data bus for high-performance CPU access
  • 32-bit ARM Cortex-M3 microcontroller
  • Two/one 16 kB SRAM blocks with separate access paths for higher throughput
  • Eight channel General Purpose DMA controller (GPDMA) on the AHB multilayer matrix that can be used with SSP, I2S-bus, UART, Analog-to-Digital and Digital-to-Analog converter peripherals, timer match signals, and for memory-to-memory transfers
  • Multilayer AHB matrix interconnect provides a separate bus for each AHB master
  • Ethernet MAC with RMII interface and dedicated DMA controller
  • USB 2.0 full-speed device/Host/OTG controller with dedicated DMA controller and on-chip PHY for device, Host, and OTG functions
  • Four UARTs with fractional baud rate generation, internal FIFO, and DMA support
  • One UART has modem control I/O and RS-485/EIA-485 support, and one UART has IrDA support
  • CAN 2.0B controller with two channels
  • SPI controller with synchronous, serial, full duplex communication and programmable data length
  • Two SSP controllers with FIFO and multi-protocol capabilities. The SSP interfaces can be used with the GPDMA controller
  • Three enhanced I2C bus interfaces, one with an open-drain output supporting full I2C specification and Fast mode plus with data rates of 1 Mbit/s, two with standard port pins
  • I2S (Inter-IC Sound) interface for digital audio input or output, with fractional rate control. The I2S-bus interface can be used with the GPDMA
  • 70 (100 pin package) General Purpose I/O (GPIO) pins with configurable pull-up/down resistors
  • 12-bit Analog-to-Digital Converter (ADC) with input multiplexing among eight pins, conversion rates up to 200 kHz, and multiple result registers
  • 10-bit Digital-to-Analog Converter (DAC) with dedicated conversion timer and DMA support
  • One motor control PWM with support for three-phase motor control
  • 32-bit ARM Cortex-M3 microcontroller
  • Quadrature encoder interface that can monitor one external quadrature encoder
  • One standard PWM/timer block with external count input
  • RTC with a separate power domain and dedicated RTC oscillator
  • WatchDog Timer (WDT). The WDT can be clocked from the internal RC oscillator,
  • the RTC oscillator, or the APB clock.
  • Arm Cortex-M3 system tick timer, including an external clock input option
  • Standard JTAG debug interface for compatibility with existing tools
  • Emulation trace module enables non-intrusive, high-speed real-time tracing of instruction execution
  • Integrated PMU (Power Management Unit) automatically adjusts internal regulators to minimize power consumption during Sleep, Deep sleep, Power-down, and Deep power-down modes
  • Four reduced power modes: Sleep, Deep-sleep, Power-down, and Deep power-down.
  • Single 3.3 V power supply (2.4 V to 3.6 V)
  • Four external interrupt inputs configurable as edge/level sensitive. All pins on Port 0 and Port 2 can be used as edge sensitive interrupt sources
  • Non-maskable Interrupt (NMI) input
  • Clock output function that can reflect the main oscillator clock, IRC clock, RTC clock, CPU clock, and the USB clock
  • The Wake-up Interrupt Controller (WIC) allows the CPU to automatically wake up from any priority interrupt that can occur while the clocks are stopped in deep sleep, Power-down, and Deep power-down modes
  • Brownout detect with separate threshold for interrupt and forced reset
  • Power-On Reset (POR)
  • Crystal oscillator with an operating range of 1 MHz to 25 MHz
  • 4 MHz internal RC oscillator trimmed to 1 % accuracy that can optionally be used as a system clock
  • USB PLL for added flexibility
  • Code Read Protection (CRP) with different security levels
