SEGGER Evaluation Software for
Nordic Semiconductor nrF52-DK

SEGGER Evaluation Software

Other Downloads

Download   embOS trial for Cortex-M and SEGGER Embedded Studio

Download   SEGGER Embedded Studio for ARM, Windows 64-bit version

Download   SEGGER Embedded Studio for ARM, Windows 32-bit version

Download   SEGGER Embedded Studio for ARM, macOS

Download   SEGGER Embedded Studio for ARM, Linux 64-bit version

Download   SEGGER Embedded Studio for ARM, Linux 32-bit version

Download   SEGGER Embedded Studio for ARM

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

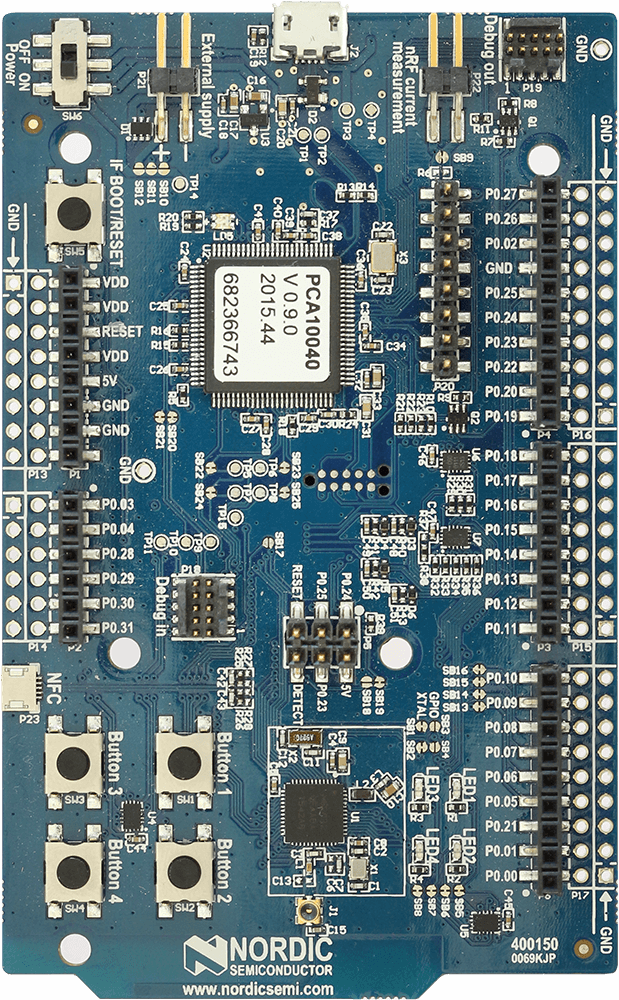

Nordic Semiconductor nrF52-DK

  • Low cost single board development kit supporting Bluetooth low energy, ANT and 2.4GHz
  • Arduino Uno shield compatible
  • ARM mbed enabled
  • All GPIO and interfaces available at edge connectors
  • J-Link OB Program/Debug supported

nRF52832

  • Single chip, highly flexible, 2.4 GHz multi-protocol SoC
  • 32-bit ARM Cortex-M4F Processor
  • 1.7v to 3.6v operation
  • 512kB flash + 64kB RAM
  • Supports concurrent Bluetooth low energy/ANT protocol operation
  • On-chip NFC tag for Out-of-Band (OOB) pairing
  • Up to +4dBm output power
  • -96dBm sensitivity, Bluetooth low energy
  • Thread safe and run-time protected
  • Event driven API
  • On air compatible with nRF24L and nRF24AP series
  • 2 data rates (2Mbps/1Mbps)
  • PPI - maximum flexibility for power-efficient applications and code simplification
  • Automated power management system with automatic power management of each peripheral
  • Configurable I/O mapping for analog and digital I/O
  • 3 x Master/Slave SPI
  • 2 x Two-wire interface (I²C)
  • UART (RTS/CTS)
  • 3 x PWM
  • AES HW encryption
  • Real Time Counter (RTC)
  • Digital microphone interface (PDM)
  • On-chip balun
