SEGGER Evaluation Software for Microchip PIC32MZ EC

  1. 1.Data Sheets
    1. 1.1.Microchip PIC32MZ EC
    2. 1.2.Multimedia Expansion Board II main features
    3. 1.3.PIC32MZ2048ECH144
Microchip - PIC32mz ec

SEGGER Evaluation Software

SEGGER Evaluation Software available upon request

Other downloads

Download emWin for PIC32MZ-EC and MPLABX

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

Microchip PIC32MZ EC

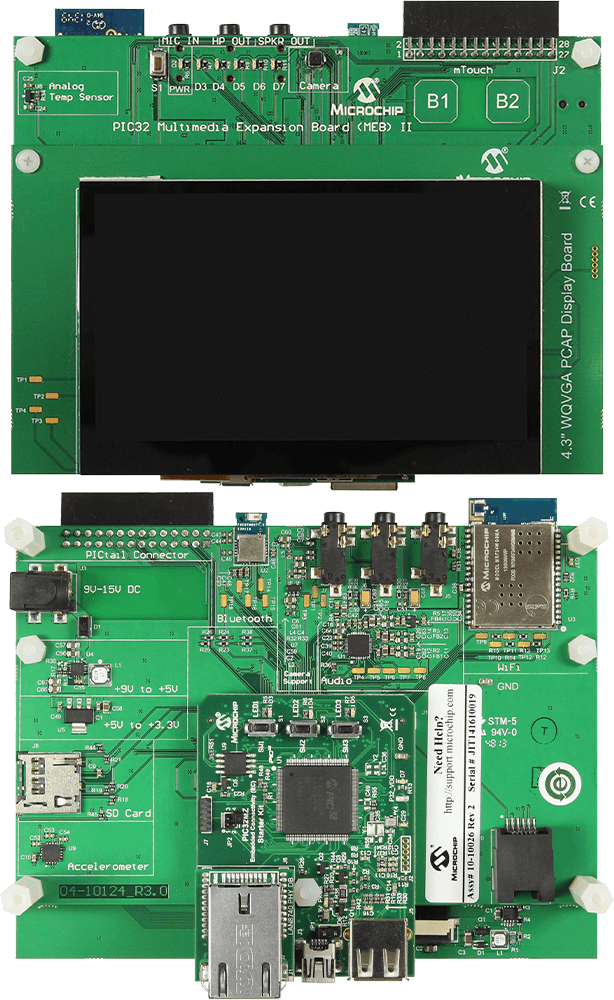

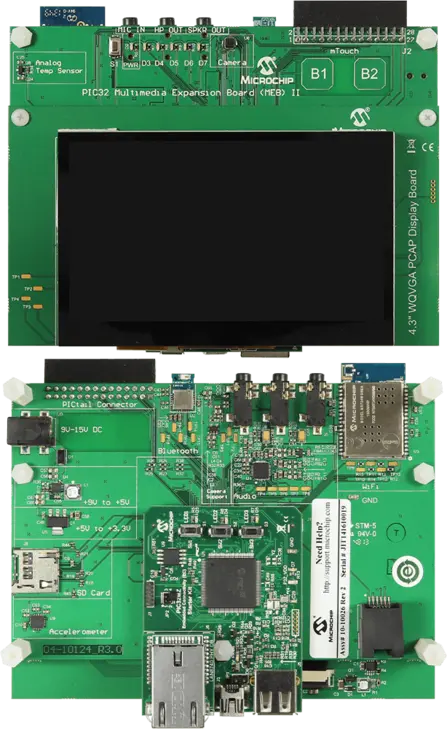

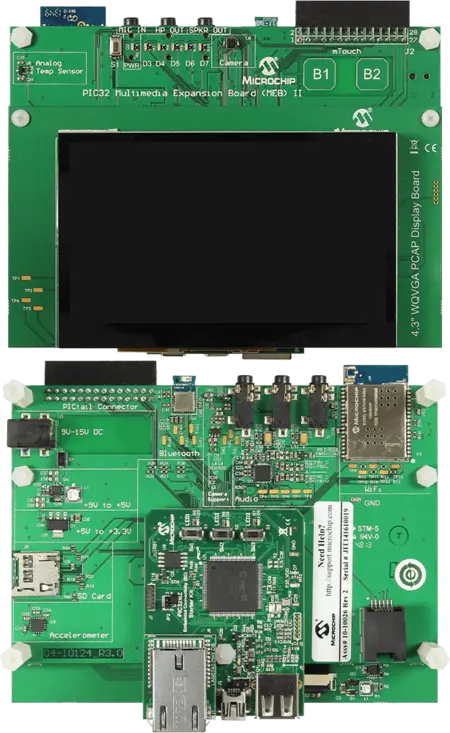

  • On-board PIC32MZ2048ECH144: 200 MHz, 2 MB Flash and 512 KB RAM
  • Integrated debugger/programmer
  • USB powered
  • 10/100 Ethernet
  • CAN 2.0b, HI-Speed USB 2.0 host/device/dual-role/OTG
  • 4 MB SQI Flash
  • Can be used with Multimedia Expansion Board II
  • Can be used with PIC32 Expansion Board using a PIC32MZ adaptor board.

Multimedia Expansion Board II main features

  • 24-bit stereo audio codec
  • Integrated 802.11 b/g wireless module
  • Low-cost Bluetooth HCI transceiver
  • Optional EBI SRAM memory
  • 4.3” WQVGA PCAP touch display daughter board
  • microSD slot
  • mTouch sensing solutions buttons
  • Analog temperature sensor
  • VGA camera
  • PICtail connector

PIC32MZ2048ECH144

  • 200 MHz/330 DMIPS, microAptiv core
  • Dual Panel Flash for live update support
  • 12-bit, 28 MSPS, 48-channel ADC module
  • Memory Management Unit for optimum embedded OS execution
  • Hi-Speed USB 2.0 Device/Host/OTG
  • 10/100 Mbps Ethernet MAC with MII and RMII interface
  • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
  • 2MB Flash memory (plus an additional 160 KB of Boot Flash)
  • 512KB SRAM memory
  • 50 MHz External Bus Interface (EBI)
  • 50 MHz Serial Quad Interface (SQI)
  • Peripheral Pin Select (PPS) functionality to enable function remap
  • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
  • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
  • Two CAN modules 2.0B Active with DeviceNet addressing support
  • Six 4-wire SPI modules (50 Mbps)
  • SQI configurable as an additional SPI module (50 MHz)
  • Five I2C modules (up to 1 Mbaud) with SMBus support
  • Parallel Master Port (PMP)
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
  • Nine Capture inputs and Nine Compare/PWM outputs
  • Graphics interface: EBI or PMP
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
  • Audio data master clock: Fractional clock frequencies with USB synchronization
  • 12-bit ADC Module
  • Temperature sensor with ±2°C accuracy
