SEGGER Evaluation Software for Renesas RX72T RSK

  1. 1.Data Sheets
    1. 1.1.Renesas RX72T RSK
    2. 1.2.RX72T
Renesas - RX72T RSK

SEGGER Evaluation Software

SEGGER Evaluation Software available upon request

Other downloads

Download embOS-Classic for Renesas RX and IAR compiler

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

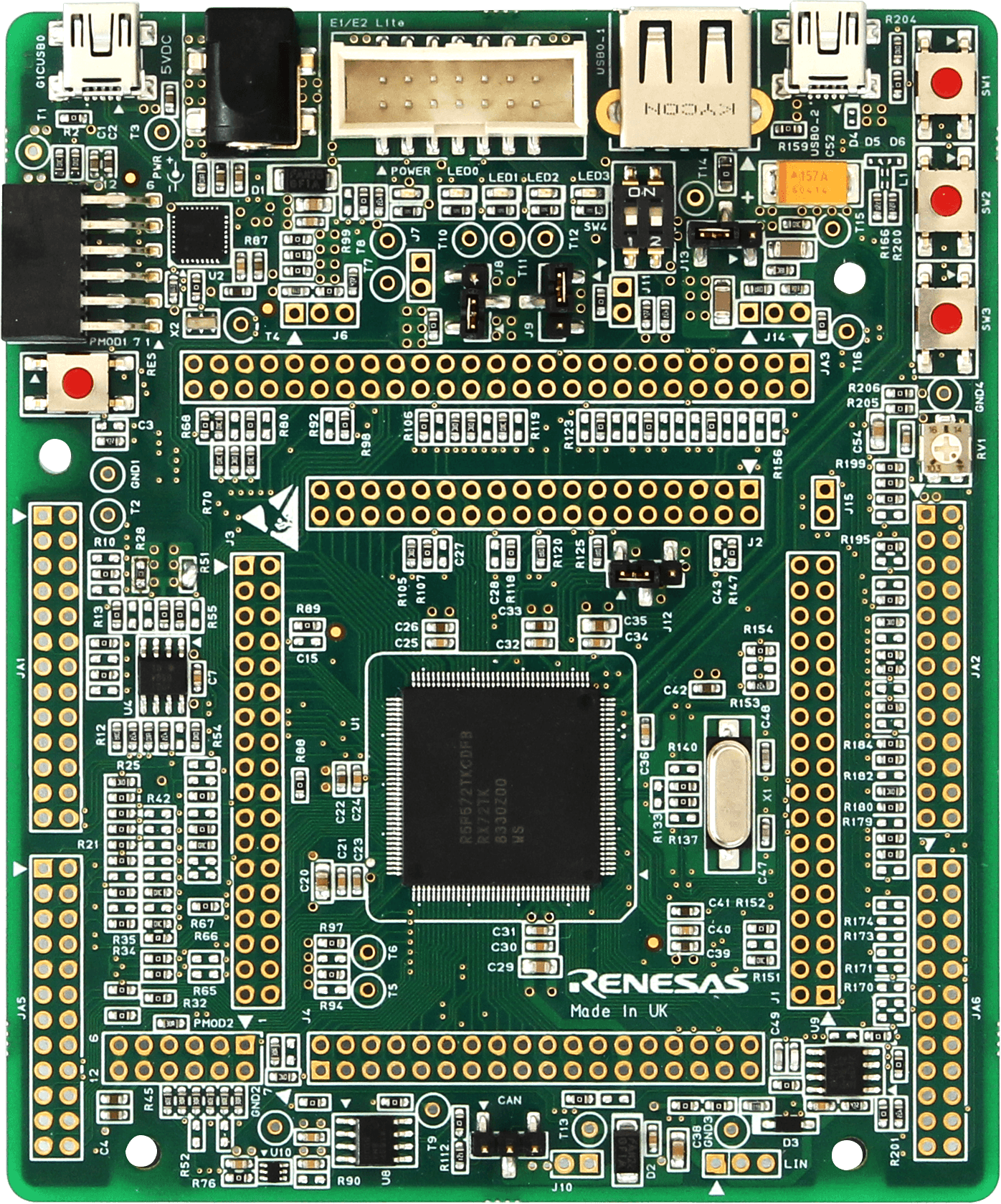

Renesas RX72T RSK

  • 2 Application Board Interfaces
  • Reset Switch
  • Pmod Connector
  • USB to Serial port
  • 5VDC in
  • USB2.0 FS (USB0 Host)
  • USB2.0 FS (USB0 Function)
  • 4 User LEDs
  • 3 User Switches
  • Potentiometer
  • CAN connector

RX72T

  • RXv3 Core 200 MHz operation (5.8 CoreMark/MHz)
  • 2.7 to 5.5 V operation
  • Operating Temperature -40 to 105 °C
  • Program Flash up to 1 MB, SRAM up to 128 KB
  • Dedicated accelerator
  • RXv3 register bank save function
  • Arithmetic unit for trigonometric functions
  • Enhanced Analog
  • 12-bit A/D Converter x 30 channels for 3 units , 12-bit D/A Converter x 2 channels
  • 6-channels of Comparators and 6-channels of Pseudo-Differential PGA
  • 200 MHz PWM
  • 4 channels for 3-phase complementary switching, 2 channels for 5-phase complementary switching, 10 channels for single-phase complementary switching
  • 4-channel high-resolution PWM enables minimum 195 ps timing adjustment
  • Trusted Secure IP Lite (AES/TRNG)
