SEGGER Evaluation Software for
PSoC 5LP Development Kit

SEGGER Evaluation Software

Other Downloads

Download   Cypress embOS demo for Cypress PSoC 5LP Development Kit

Download   embOS trial for Cortex-M and Cypress PsoC

Download   SEGGER Embedded Studio for ARM, Windows 64-bit version

Download   SEGGER Embedded Studio for ARM, Windows 32-bit version

Download   SEGGER Embedded Studio for ARM, macOS

Download   SEGGER Embedded Studio for ARM, Linux 64-bit version

Download   SEGGER Embedded Studio for ARM, Linux 32-bit version

Download   SEGGER Embedded Studio for ARM

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

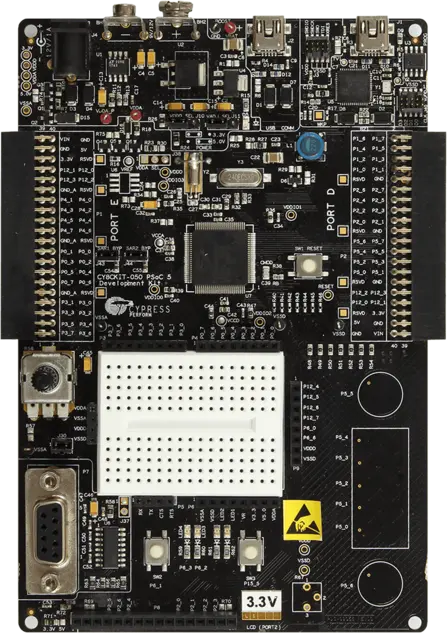

PSoC 5LP Development Kit

  • Breadboard prototyping area
  • 2 CapSense™ buttons and 5-element slider
  • 4 user LEDs
  • Power and status LEDs
  • 2 user push-button switches
  • Reset switch
  • 2 expansion ports
  • Potentiometer
  • LCD header
  • 24MHz and 32kHz crystals
  • USB and UART interfaces
  • Multiple power supply options: JTAG/SWD header, USB, boost converter, 9V battery, or external power
  • 3.3V or 5.0V operation (jumper)
  • JTAG/SWD debug connector 10 pin 0.1”

PSoC 5LP CY8C5868AXI-LP035

  • 80MHz ARM Cortex-M3 CPU with single cycle multiply
  • 256kB flash, 64kB SRAM, 2kB EEPROM
  • 1kB of 4-way set-associative cache memory
  • 24-channel direct memory access (DMA)
  • CapSense® Touch Sensing with SmartSense™ Auto-Tuning
  • 2 12-bit 1Msps sequenced SAR ADCs
  • 20-bit 192ksps Delta-Sigma ADC
  • 4 8-bit configurable IDAC/VDACs
  • 4 opamps, 4 comparators
  • 4 configurable multifunction analog blocks supporting PGA, TIA, Mixer and Sample&Hold
  • High-precision 1.024V reference
  • 4 16-bit Timer/Counter/PWM Blocks
  • 4 PLD-based Logic Blocks (use for I2C, SPI, UART, etc.)
  • Full CAN 2.0b with 16 RX, 8 TX buffers
  • USB 2.0 using internal oscillator
  • 24-bit fixed-point digital filter block (DFB) to implement FIR and IIR filters
  • 72 I/Os (62 GPIO, 8 SIO, 2 USBIO) with flexible routing fabric
  • LCD direct-drive from any GPIO
  • Low power 0.50V to 5.50V operation
  • 2µA Sleep mode, 300nA Hibernate mode
