SEGGER Evaluation Software for
PSoC 4 Development Kit

Downloads

Download   Cypress embOS demo for Cypress PSoC 4 Development Kit

Download   embOS trial for Cortex-M and Cypress PsoC

Download   SEGGER Embedded Studio for Windows, macOS and Linux

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

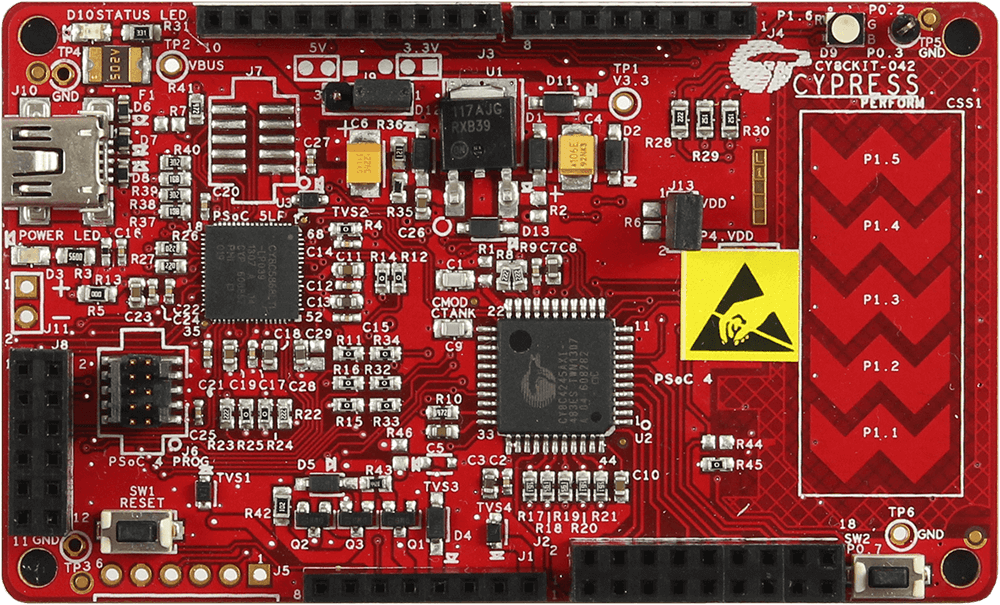

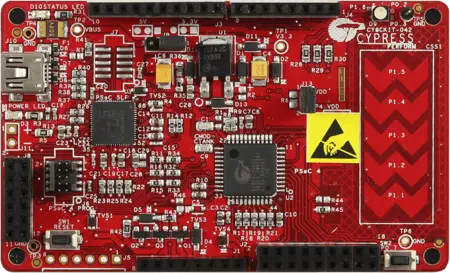

PSoC 4 Development Kit

  • Arduino™ shield-compatible headers
  • Digilent® Pmod™ peripheral module header
  • 5-element CapSense™ slider
  • RGB LED
  • Power and status LEDs
  • Reset and user push-button switches
  • Multiple power supply options: JTAG/SWD header, USB, external power via LDO, or Arduino shield
  • 3.3V or 5.0V operation (jumper)
  • JTAG/SWD debug connector 10 pin 0.1”
  • On-board PSoC 5LP for serial I/O (I2c or UART) bridge to PC

PSoC 4 CY8C4245AXI-483

  • 48MHz ARM Cortex-M0 CPU with single cycle multiply
  • 32kB Flash with read accelerator, 4kB SRAM
  • 12-bit 1Msps sequenced SAR ADC
  • CapSense® Touch Sensing with SmartSense™ Auto-Tuning
  • 2 op-amps
  • 2 current DACs
  • 2 low power comparators
  • 2 Serial Communication Blocks (I2C, UART or SPI)
  • 4 16-bit Timer/Counter/PWM Blocks
  • 4 PLD-based Logic Blocks
  • 36 Programmable GPIO
  • Low power 1.71V to 5.50V operation
  • 150nA Hibernate mode, 20nA Stop mode
