    J-Link Pro

    The ultra-fast debug probe with USB and Ethernet interfaces

    Buy now
    Compare J-Link models
    Documentation

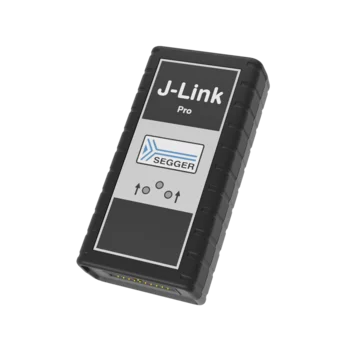

    SEGGER J-Link Pro debug probe
    1. 1.Overview
    2. 2.Key features
      1. 2.1.High download speeds
      2. 2.2.Real Time Transfer
      3. 2.3.Broad CPU and IDE support
    3. 3.Supported devices
    4. 4.Use case
      1. 4.1.Remote debugging in distributed development environments
    5. 5.J-Link technology
    6. 6.Tool set
      1. 6.1.J-Link DSK
      2. 6.2.J-Link SDK
    7. 7.Software
    8. 8.Buyers Guide
    9. 9.Customer support
    10. 10.Product images
    11. 11.Technical specifications
    12. 12.Package content
    13. 13.FAQ

    Overview

    J-Link Pro is a powerful debug probe for JTAG/SWD programming and debugging. It provides both USB and Ethernet connections, and it is compatible with Linux, macOS, and Windows, making it easy to use in any development or production setup.

    The built-in web server simplifies configuration, and Ethernet allows the probe to be positioned far away from a PC, even with wireless networks. This makes J-Link Pro ideal for remote or large setups, where high speeds and electrical isolation are important. It works straight out of the box and includes free software and firmware updates.


    Key features

    A gray circular button featuring a downward arrow above a horizontal line, indicating a download action.

    High download speeds

    J-Link Pro offers download speeds of up to 4 MB/s, ensuring that project development moves forward smoothly and reliably, with minimized download times.

    A circular icon with a gray background and the letters "RTT" in the center. Two horizontal arrows point left and right on either side of the text, indicating a communication or connectivity function.

    Real Time Transfer

    J-Link Pro offers Real Time Transfer (RTT), which provides a simplified path for information to travel when an application is running. Users can also easily monitor changes in operation.

    Icon featuring three rectangular elements, each labeled with the letters X, Y, and Z stacked vertically. The background is circular and gray, contrasting with the white elements. The design suggests a structured arrangement, possibly related to categorization or labeling.

    Broad CPU and IDE support

    J-Link Pro works with an extensive range of microcontrollers and integrated development environments (IDEs). It enables users to connect their selected microcontroller with their favorite IDE.


    Supported devices

    The list of supported manufacturers, families, devices, and SoCs includes tens of thousands of devices in hundreds of device families.

    Device not listed? Please don’t hesitate to contact us.


    Use case

    SEGGER J-Link Pro debug probe

    Remote debugging in distributed development environments

    With its Ethernet interface, J-Link Pro is perfect for remote debugging in distributed teams or large development environments. Developers can connect to target systems located in different geographic locations via a local network or intranet, reducing the need for physical proximity to hardware.

    Teams can debug and program embedded systems efficiently, even when separated by significant distances, all while maintaining impressive speeds of up to 4 MB/s for rapid testing and development.


    J-Link technology

    Unlimited Breakpoints

    Set as many breakpoints as you need in internal or external flash. Debug thoroughly, even when hardware breakpoints run out.

    Read more

    Monitor Mode

    Keep essential system functions running while debugging. Perfect for real-time applications that must stay responsive.

    Read more

    Power Profiling

    Measure and optimize energy consumption with high sampling rates and 50 µA resolution. Ideal for battery-powered or energy-harvesting devices.

    Read more



    An exploded view of a J-Link Pro debug probe, showcasing its main components: a circuit board with electronic components, a plastic casing, and additional parts. The design exhibits the internal structure and layout, emphasizing the probe's purpose in programming and debugging electronic devices.

    Tool set

    J-Link Pro comes with a versatile suite of software tools that enhance its performance and flexibility for debugging and programming. Utilities such as J-Link Commander, J-Link Configurator, and J-Link Remote Server make it a powerful and convenient tool for any development setup. Below are selected highlights from this tool set.

    A close-up view of a black circuit board featuring intricate pathways and connections. A white curved line connects two points, highlighting the flow of electrical signals. The image emphasizes the complexity of technology and the design of electronic components.

    Embedded Studio

    J-Link Pro supports SEGGER Embedded Studio as well as virtually all Integrated Development Environments (IDEs), ensuring maximum flexibility in any development setup.

    Read more
    A digital interface displays a "Tool set" option, featuring an icon of a package being lifted on a platform. The background consists of a circuit board, emphasizing a technological theme. The layout suggests user interaction with tools related to a software or hardware environment.

    Ozone

    It integrates seamlessly with SEGGER’s Ozone debugger, providing a powerful environment for performance analysis, instruction tracing, and code optimization.

    Read more
    A close-up of a circuit board featuring a microchip with numerous connecting pins. The background displays intricate patterns of pathways and components typical of electronic circuitry, highlighting the technology's complexity and design.

    J-Flash

    J-Flash enables programming of microcontroller internal and external flash memories. Exceedingly versatile, it runs on Microsoft Windows, Linux, and macOS, and it supports Cortex Arm, RX, and RISC-V devices and cores.

    Read more
    An illustration of a J-Link debugger connected to multiple microchips, demonstrating a programming or debugging process. The J-Link device is shown at the top with an arrow pointing down toward the microchips, indicating data flow. A J-Link DSK is also present on the right.

    J-Link DSK

    The J-Link Device Support Kit (DSK) allows silicon vendors and users to add debug and flash programming support for new devices. A new device typically requires a flash loader and, in some cases, a script defining special connect and reset sequences.
    The DSK includes the SEGGER flash loader as well as a collection of example script files for devices that require special handling.

     More information

    A close-up image of a computer microchip on a circuit board, featuring intricate pathways. Overlaying the image is a graphic displaying "J-Link SDK" with a downward arrow symbol, indicating software development resources related to the microchip.

    J-Link SDK

    The J-Link Software Development Kit (SDK) enables the integration of J-Link and J-Trace support into custom applications. It is used in professional IDEs, such as SEGGER Embedded Studio, to enable direct debugging via J-Link / J-Trace, as well as in customized production utilities. Available for Windows, Linux, and macOS, the SDK can be used with nearly any programming language or solution.

     More information


    Software

    All software is included free of charge, as are licenses for all J-Link-related SEGGER software products, such as J-Link Unlimited Flash Breakpoints, Ozone, RDI/RDDI, J-Flash, and J-Link GDB Server.

    The J-Link Software and Documentation Package is available here:

    DownloadJ-Link Software and Documentation Pack

    Buyers Guide

    SEGGER J-Link BASE debug probe

    J-Link BASE


    Ethernet

    J-Flash / J-Flash SPI

    Unlimited Flash Breakpoints

    Ozone

    Monitor Mode

    RDI / RDDI

    Real Time Transfer (RTT)

    Download speed up to 1.0 MByte/sec

    Target interface speed up to 15 MHz

    Buy now
    SEGGER J-Link PLUS debug probe

    J-Link PLUS


    Ethernet

    J-Flash / J-Flash SPI

    Unlimited Flash Breakpoints

    Ozone

    Monitor Mode

    RDI / RDDI

    Real Time Transfer (RTT)

     Download speed up to 1.0 MByte/sec

    Target interface speed up to 15 MHz


    Buy now
    SEGGER J-Link WiFi debug probe

    J-Link WiFi


    Wireless Connection

    J-Flash / J-Flash SPI

    Unlimited Flash Breakpoints

    Ozone

    Monitor Mode

    RDI / RDDI

    Real Time Transfer (RTT)

    Download speed up to 1.0 MByte/sec

    Target interface speed up to 15 MHz

    Buy now
    SEGGER J-Link ULTRA+ debug probe

    J-Link Ultra


    Ethernet

    J-Flash / J-Flash SPI

    Unlimited Flash Breakpoints

    Ozone

    Monitor Mode

    RDI / RDDI

    Real Time Transfer (RTT)

    Download speed up to 4.0 MByte/sec

    Target interface speed up to 50 MHz

    Buy now
    SEGGER J-Link Pro debug probe

    J-Link Pro


    Ethernet

    J-Flash / J-Flash SPI

    Unlimited Flash Breakpoints

    Ozone

    Monitor Mode

    RDI / RDDI

    Real Time Transfer (RTT)

    Download speed up to 4.0 MByte/sec

    Target interface speed up to 50 MHz

    Buy now
    J-Link Pro PoE – specialized high-end debug probe for test farms

    J-Link Pro PoE


    Power over Ethernet

    J-Flash / J-Flash SPI

    Unlimited Flash Breakpoints

    Ozone

    Monitor Mode

    RDI / RDDI

    Real Time Transfer (RTT)

    Download speed up to 4.0 MByte/sec

    Target interface speed up to 50 MHz

    Buy now

    Customer support

    J-Link Pro comes with one year (12 months) of Basic Support. Beyond that, SEGGER's Extended Coverage gives users the option to extend the hardware warranty and Basic Support for one additional year (12 months) or two additional years (24 months). These options are only available at the time of purchase, either through the Web Shop or upon request; adding coverage at a later date is not possible.


    Contact us     Detailed pricing information


    Product images

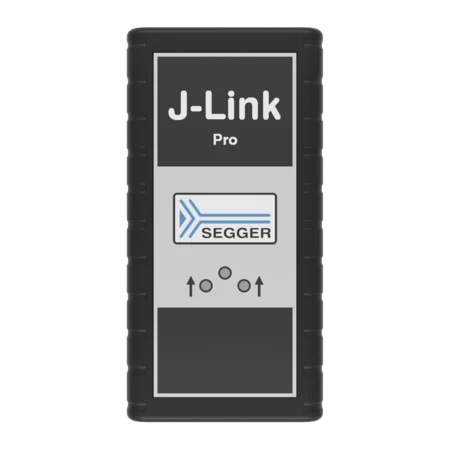

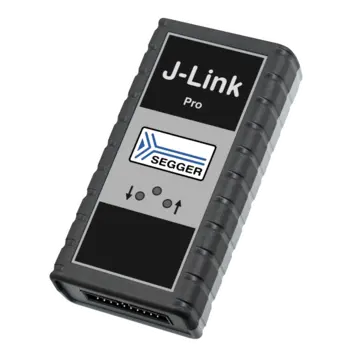

    A gray device with ports on one end, labeled "J-Link Pro." It features a square USB port and an Ethernet port, both for connectivity. The surface has a textured design for grip. It is designed for programming and debugging electronic devices.
    J-Link Pro host connector
    SEGGER J-Link Pro debug probe
    J-Link Pro front
    A J-Link Pro debug probe is shown, viewed from the front. It features a rectangular design with a connector at one end. The device has labels and a logo on its surface, indicating its brand and model. The overall color scheme is gray with a black textured edge.
    J-Link Pro target connector

    Technical specifications

    General
    Supported OSMicrosoft Windows (x86/x64), Linux (x86/x64/Arm), macOS (x86/Apple Silicon)
    Electromagnetic compatibility (EMC)EN 55024, EN 55032
    Operating temperature+5°C ... +60°C
    Storage temperature-20°C ... +65 °C
    Relative humidity (non-condensing)Max. 90% rH
    Mechanical
    Size (without cables)100mm x 53mm x 27mm
    Weight (without cables)73g
    Available interfaces
    Ethernet interface100 Mbit/s
    USB interfaceUSB 2.0 (Hi-Speed)
    Target interfaceJTAG/SWD 20-pin
    JTAG/SWD interface, electrical
    Target interface voltage (VIF)1.2V ... 5V
    Current drawn from target voltage sense pin (VTRef)< 25µA
    Target supply voltage5V (derived from USB voltage)
    Target supply currentMax. 300mA
    Reset typeOpen drain with 100 Ohms series resistor. Can be pulled low or tristated
    Reset low level output voltageVOL <= 10% of VIF
    For the whole target voltage range (1.2V <= VIF <= 5V)
    LOW level input voltage (VIL)VIL <= 40% of VIF
    HIGH level input voltage (VIH)VIH >= 60% of VIF
    For 1.2V >= VIF <= 3.6V
    LOW level output voltage (VOL) with a load of 10 kOhmVOL <= 20% of VIF
    HIGH level output voltage (VOH) with a load of 10 kOhmVOH >= 80% of VIF
    For 3.6 <= VIF <= 5V
    LOW level output voltage (VOL) with a load of 10 kOhmVOL <= 20% of VIF
    HIGH level output voltage (VOH) with a load of 10 kOhmVOH >= 80% of VIF
    JTAG/SWD interface, timing
    Target interface speedMax. 50 MHz
    SWO sampling frequencyMax. 100 MHz
    Data input rise time (Trdi)Trdi <= 20ns
    Data input fall time (Tfdi)Tfdi <= 20ns
    Data output rise time (Trdo)Trdo <= 10ns
    Data output fall time (Tfdo)Tfdo <= 10ns
    Clock rise time (Trc)Trc <= 3ns
    Clock fall time (Tfc)Trc <= 3ns
    Analog power measurement interface
    Sampling frequency200 kHz
    Resolution50 uA

    Package content

    SEGGER J-Link Pro debug probe
    J-Link Pro
    J-Link Pro: USB cable black
    USB cable
    J-Link Pro: 20-pin, 0.1" target ribbon cable
    20-pin, 0.1" target ribbon cable

    FAQ

    Can I use J-Flash with J-Link Pro?

    Yes. J-Link PRO includes a preinstalled license for J-Flash on the probe itself. No setup is required — simply connect the J-Link PRO and start using J-Flash.

    What is the advantage of J-Link versus simple probes such as FTDI-based systems?

    J-Link offers numerous advantages: the dedicated J-Link software provided by SEGGER, which enables seamless integration with common IDEs; the availability of Unlimited Flash Breakpoints for debugging software running in microcontroller flash memory; its high speed; and its simple, fast flash download capability.

    In contrast to most simple probes, J-Link supports adaptive clocking as well as SWD and SWO. It also operates more reliably, as it is not merely a simple USB-to-JTAG converter. Instead, it uses the intelligence of its built-in CPU to ensure robust communication, particularly in situations where the target CPU runs at low clock speeds.

    Can I work with more than one J-Link at the same time on the same machine?

    Yes. You can connect any number of J-Links to your PC without additional configuration. Each J-Link is automatically registered with its unique serial number, allowing you to use multiple J-Links simultaneously.

    I have multiple Arm cores in my JTAG chain. How can I debug them simultaneously with J-Link?

    Two or more debuggers can use the same J-Link at the same time. Multi-core debugging requires multiple debuggers or multiple instances of the same debugger. Simply specify in your debugger which device in the scan chain you want to debug. No additional configuration is required.

    Does J-Link support the Embedded Trace Buffer (ETB)?

    Yes. J-Link supports ETB on Cortex-M3, Cortex-M4, Cortex-M7, and Cortex-A/R devices, if implemented by the target.

    Does J-Link support the Micro Trace Buffer (MTB)?

    Yes.

    Does J-Link support the Embedded Trace Macrocell (ETM)?

    No. ETM requires a separate connection to the Arm CPU and a device with built-in ETM support. ETM is supported by the J-Trace product family.

    What is the maximum voltage that can be handled by the galvanic isolation of the Ethernet?

    The Ethernet data lines are isolated in accordance with IEEE 802.3, with a test voltage of 1500 Vrms for one minute. This does not apply to the Ethernet shield, which has a direct electrical connection to the USB shield and resistive and capacitive coupling to the probe ground. For effective isolation, an unshielded twisted pair Ethernet cable must be used.
