Programming Voltage Adapter
Seamless connectivity for Flasher
- Delivers target voltages exceeding standard 5V limits
- Plugs directly between the Flasher probe and debug cable
- Enables programming for targets with elevated power requirements
Overview
The Programming Voltage Adapter provides two independently controlled voltages for target programming and supply. Both channels support 4 V to 20 V and up to 500 mA, making it suitable for targets requiring programming voltages above their supply voltage.
Technical specification
- Programming voltage
- 4 V–20 V, max. 500 mA
- Voltage source
- External power supply, controlled by Flasher
- 5 V target supply
- Optional 5 V supply from Flasher via jumper
- Connector
- 20-pin, 0.1" socket and header
- Signal connection
- 1:1 connectio, except pin 17 (programming voltage)

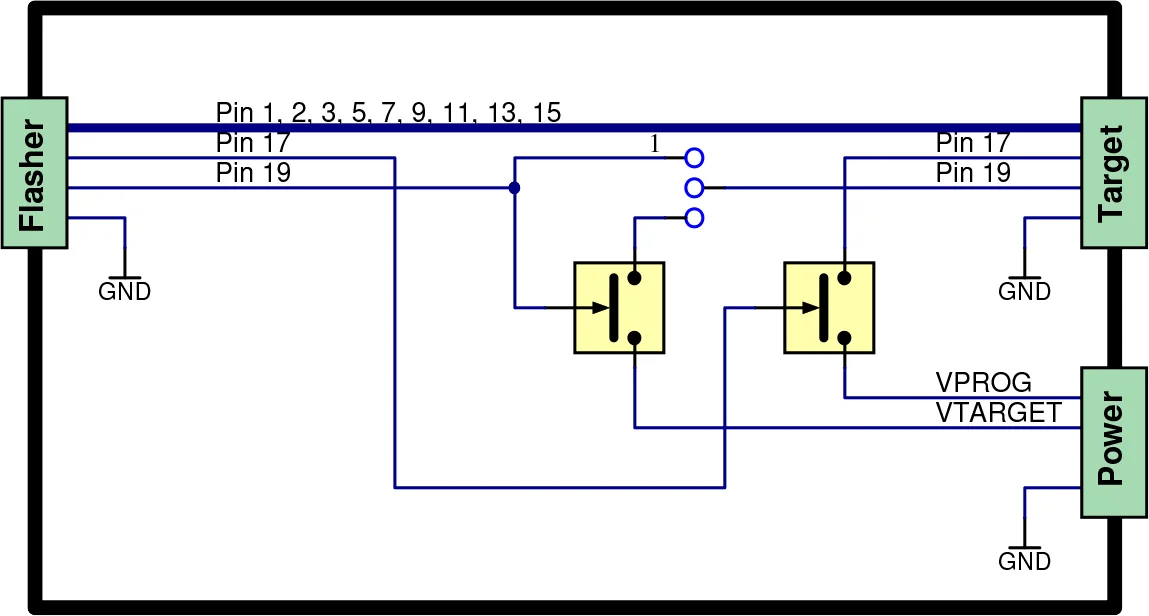

Schematics
