Microchip 2-Wire JTAG TDI Adapter

Seamless connectivity for J-Link

  • J-Link connectivity for Microchip IS208x MCUs
  • 2-wire JTAG TDI interface
Buy now Compare J-Link adapters Documentation
  1. 1.Overview
  2. 2.Pinout & schematics
  3. 3.Suitable products
    1. 3.1.J-Link

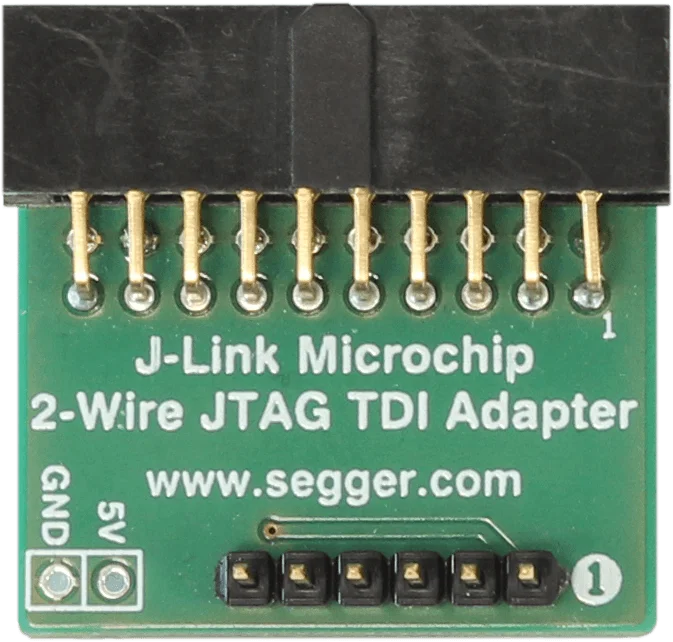

J-Link Microchip 2 Wire JTAG TDI Adapter
J-Link Microchip 2 Wire JTAG TDI Adapter Cable

Overview

The Microchip 2-Wire JTAG TDI Adapter allows debug connections between J-Link and target hardware which comes with Microchip IS208x series MCUs. It supports the Microchip 6-pin single row .1" connector.

Schematic available upon request



Pinout & schematics

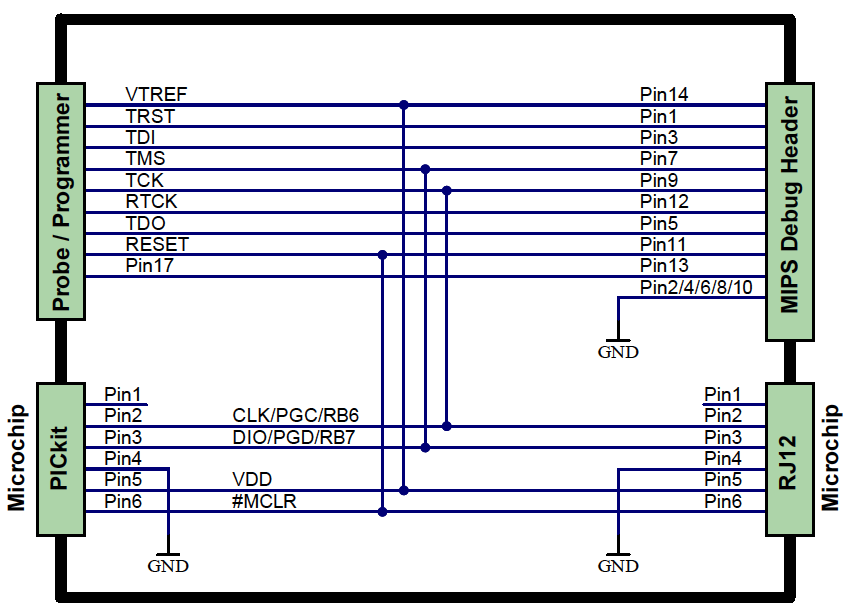

Schematic diagram showing connections between a Microchip PICkit, a programming/probing device, and an MIPS debug header via an RJ12 connector. It includes labeled pins and signal lines, indicating various connections such as VTREF, TDI, TMS, and GND.
Pin
Signal
1
#RESET
2
VDD
3
GND
4
TDI
5
TCK
6
NC (not connected but populated on header)

Suitable products

J-Link

Image of a J-Link debugging device from SEGGER. The device has a rectangular shape with a black casing and a silver panel featuring the "J-Link" logo and SEGGER branding. It includes several buttons and indicators for user interaction.
